제품기술

앞선 기술력으로 세계의 중심이 됩니다

설비현황

HR LINE

  • HR SHEAR

    ITEM SPECIFICATION
    두께(Thickness) 3 ~ 12.7mm
    소재 폭(Width) 600 ~ 2,050mm
    단중(Coil Weight) 최대 25,000kg
    제품길이(Shearing Length) 1,000 ~ 13,000mm
  • HR SLITTER

    ITEM SPECIFICATION
    두께(Thickness) 3 ~ 12.7mm
    소재 폭(Width) 400 ~ 2,050mm
    단중(Coil Weight) 최대 25,000kg
    제품폭(Slitting Width) 30 ~ 2,000mm

CR LINE

  • CR SHEAR (#1,2)

    ITEM SPECIFICATION
    두께(Thickness) 0.25 ~ 3mm
    소재 폭(Width) 500 ~ 1,550mm
    단중(Coil Weight) 25,000kg
    제품길이(Shearing Length) 400 ~ 7,000mm
    (NO.2 → 6,100)
  • CR SLITTER (#1,2)

    ITEM SPECIFICATION
    두께(Thickness) 0.25 ~ 3 mm
    소재 폭(Width) 500 ~ 1,550mm
    (NO.2 → 1,250)
    단중(Coil Weight) 25,000kg
    제품폭(Slitting Width) 25 ~ 1,550mm
  • MINI SHEAR LINE

    CR MINI SHEAR

    ITEM SPECIFICATION
    두께(Thickness) 0.25 ~ 3mm
    소재 폭(Width) 150 ~ 800mm
    단중(Coil Weight) 10,000kg
    제품길이(Shearing Length) 400 ~ 3,000mm
  • FLAT BAR LINE

    HR FLAT BAR

    ITEM SPECIFICATION
    두께(Thickness) 3 ~ 12.7mm
    폭(Width) 30 ~ 150mm
    길이(Shearing Length) 2,000 ~ 11,000mm
  • COIL POLISHING LINE

    CPL

    ITEM SPECIFICATION
    두께(Thickness) 0.25 ~ 3mm
    소재 폭(Width) 500 ~ 1,550mm
    단중(Coil Weight) 25,000kg
    표면 사상 NO.3, NO.4, HAIR LINE

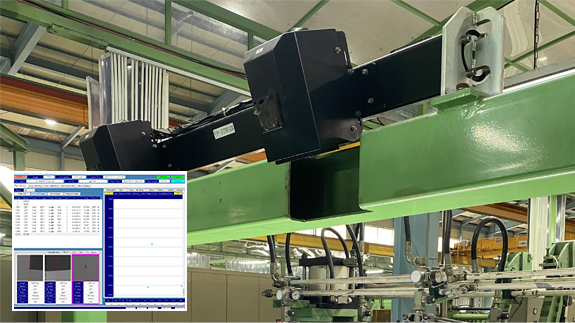

  • 표면 검사장비

    SDD

    ITEM SPECIFICATION
    검출가능 Line Speed Max 100m/m
    검출가능 결함크기 0.25mm
    해당설비 CR Shear NO.1
    CR Slitter NO.1
